C16 奈米力學和奈米磨潤性質測試系統

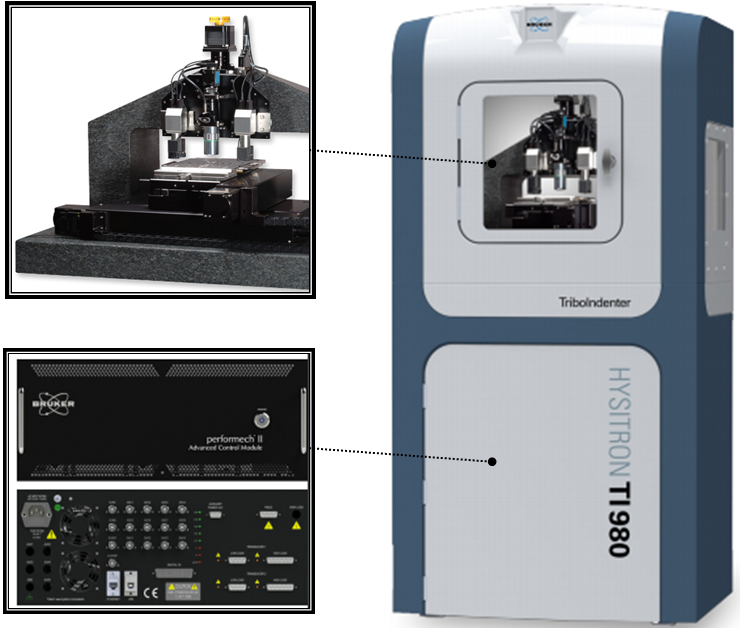

C16 Hysitron TI 980 Nanomechanical & Nanotribological Testing

壹、儀器設備規格

規格：

1. Hysitron TI 980
2. On-site Installation and Basic Training
3. xSol 800 High Temperature Sample Heating Stage
4. D OmniProbe, 10 N Maximum Force
5. Biosoft 10 mN 150 µm transducer for Soft and Bio Material

功能：

1. In-Situ SPM Imaging: Dual piezo scanners deliver high-resolution surface topography
2. Optical Imaging: High-resolution colour optics enable easy navigation and test positioning
3. 2D Capacitive Transducer: Renowned low-noise 2D capacitive transducer technology
4. Test Stability: Metrology-grade granite framing assures superior instrument rigidity & stability
5. Vibration Isolation: Integrated active anti-vibration system isolates TI 980 from its environment
6. Environmental Isolation: Multi-layered enclosure protects against environmental disturbances
7. Property Mapping: XPM ultrahigh-speed nanoindentation delivers high-resolution
8. Dynamic Nanoindentation: nanoDMA® III enables viscoelastic characterization and measurement
9. Versatile Sample Chuck: Rapid and reliable sample mounting options
10. Performech II: Remarkable advances in control and testing capabilities

貳、服務項目

1. NanoDMA III-Dynamic Nanoindentation:

NanoDMA III is a powerful dynamic nanoindentation technique that provides continuous measurement of elastic-plastic and viscoelastic properties as a function of indentation depth, frequency, and time.

2. XPM-Accelerated Property Mapping:

XPM sets a new industry standard for nanomechanical testing throughput paired with measurement resolution and accuracy. At up to 6 nanoindentation measurements/second, XPM delivers comprehensive nanomechanical property maps and property distribution statistics in a record amount of time.

3. SPM Imaging:

Pioneering scanning nanoindenters utilize the same probe to both raster the sample surface for topography imaging and to conduct the nanomechanical test. In-situ SPM imaging maximizes test placement accuracy, provides immediate post-test observation of material deformation behavior, and accelerates testing throughput.

4. Nanoindentation:

Precise lateral positioning and nanoscale load and depth control allow for the quantitative determination of localized mechanical properties such as elastic modulus, hardness, creep, stress relaxation, and fracture toughness for a wide variety of materials.

5. Nanoscratch:

Ultra-sensitive force and displacement measurements in both the normal and lateral directions enable quantitative nanoscale tribological characterization on individual microstructures and interfaces, along with interfacial adhesion characterization of ultra-thin films.

6. Nanowear:

Quantify wear behavior over the nanometer to micrometer length scales as a function of number of sliding cycles, sliding velocity, wear area, and applied force.

參、取樣與使用注意事項

1. 不提供具磁性待測件之檢測服務
2. 不提供表面具沾黏性物質待測件之檢測服務
3. 不提供具毒性待測件之檢測服務
4. 不提供溫度條件逾550℃之檢測服務
5. 不開放未經取得操作核可書面證明者親測之服務

肆、開放時段

週一～週五，9:00～21:00

伍、訓練課程規定

1. 教育訓練課程項目：

1. 奈米壓痕
2. 奈米刮痕／磨耗
3. 原子級磨耗量／吸附力量測
4. 黏彈性量測（DMA）
5. 表面形貌/粗糙度量測（SPM）
6. 拉曼光譜成份分析
7. 破裂韌度
8. 超硬材料大力量檢測量測
1. 軟性材料／生物組織性能量測

2. 教育訓練授課週期：

機理介紹：2次／年

3. 教育訓練授課時數:

機理介紹：4小時／項

實機操作：4小時／項

4. 教育訓練課程費用：

校內：1200元／次

校外：1800元／次

陸、收費標準（含訓練課程）※

校內學術：355元

校外學術：5100元

業界：5100元

柒、儀器聯絡與管理人

聯絡人：張雅淳 專任助理

電話：06-2757575 #31308

傳真號碼：06-2343270

E-mail：aimtop@ncku.edu.tw

諮詢教授：生物醫學工程學系 鄭友仁 教授

捌、其他注意事項

1. 提供客製化檢測代工
2. 使用共用儀器設備所取得之各項量測數據，不得用於營利用途、廣告標示、訴訟上證據等其他用途。
